主键、创建表、插入数据

更新: 2025/2/24 字数: 0 字时长: 0 分钟

主键

打个比方，下面的一张数据表，表中有两条一模一样的数据：

姓名	性别	年龄
小白	男	20
小白	男	20

假如我们想筛选出第二个“小白”的信息，但是每个字段的数据都是一样的，是没办法筛选出来的。现增加一个id字段给表中的每一行都赋上唯一的标识：

id（主键）	姓名	性别	年龄
0001	小白	男	20
0002	小白	男	20

这样我们就可以通过id等于0002这个条件，将第二个小白的数据筛选出来。这时我们可以称**“id字段”为主键**，即唯一标识表中每行的这个列（或这组列）称为主键。

主键(primary key)：一列（或一组列），其值能够唯一区分表中每个行。

主键是一个字段、一列。
主键的值具有唯一性。
主键每个值标识每一行

使用规则

表中的任何列都可以作为主键，只要它满足以下条件：

任意两行都不具有相同的主键值；
每个行都必须具有一个主键值（主键列不允许NULL值）。
主键有且只有一个，最多也只能有一个。

主键通常定义在一列上，也可以使用多个列作为主键（即联合主键，还是一个主键），只要它满足以下条件：

任意两行都不具有相同的主键值；
每个行都必须具有一个主键值（主键列不允许NULL值）。
单个列的值可以不唯一，但所有列值的组合必须是唯一的。

使用习惯

主键用来表示一个特定的行，使用时最好有以下习惯：

不更新主键列中的值。
不要在主键列中用重要的值。
不要在主键列中使用可能会更改的值。
在表中主键不是必需的，但没有主键，更新或删除表中特定行很困难，因此最好保证每个表具有一个主键。

创建表

SQL中利用 CREATE TABLE 创建表，必须给出下列信息：

新表的名字，在关键字 CREATE TABLE 之后给出；
表列的名字和定义，用逗号分隔。

sql

CREATE TABLE `通用认证信息` (
  `ID` int NOT NULL AUTO_INCREMENT,
  `公司名称` varchar(1000) CHARACTER SET utf8 COLLATE utf8_croatian_ci DEFAULT NULL,
  `认证项目` varchar(1000) CHARACTER SET utf8 COLLATE utf8_croatian_ci DEFAULT NULL,
  `证书状态` varchar(1000) CHARACTER SET utf8 COLLATE utf8_croatian_ci DEFAULT NULL,
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COLLATE=utf8_croatian_ci;
/*
CREATE TABLE：创建表；
`通用认证信息`：表名；
`ID`：第一个字段；
int：数值类型；
NOT NULL：不能为空；
AUTO_INCREMENT：自增属性；
`公司名称`：第二个字段；
`认证项目`：第三个字段；
`证书状态`：第四个字段；
DEFAULT NULL：默认NULL，允许空值；
PRIMARY KEY (`ID`)：ID字段为主键；
ENGINE=InnoDB：当前MySQL引擎为InnoDB
AUTO_INCREMENT=1：自增数从1开始自增
CHARACTER SET utf8等同DEFAULT CHARSET=utf8：字符编码为utf8；
COLLATE utf8_croatian_ci等同COLLATE=utf8_croatian_ci：依据utf8_croatian_ci进行排序和比较；
*/

运行SQL建表语句：

QQ截图20201115022336

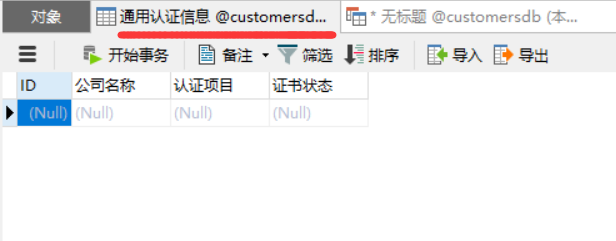

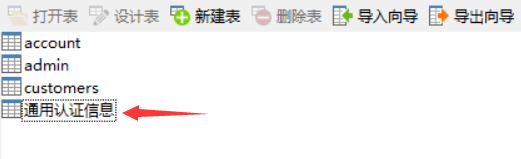

在数据库就会新出现一张只有结构没有数据且名称为“通用认证信息”的空表：

QQ截图20201115022606

QQ截图20201115022636

插入数据

把数据插入表中的最简单的方法是使用基本的 INSERT INTO 语法。

完整插入

插入完整的行：存储到每个表列中的数据在VALUES子句中给出，对每个列必须提供一个值。如果某个列没有值，应该使用NULL值，但前提是该列指定空值。

sql

-- 不指定字段，则按照value值的顺序给字段赋值
INSERT INTO `通用认证信息` VALUES ('1', '小白公司', '机械', '有效');

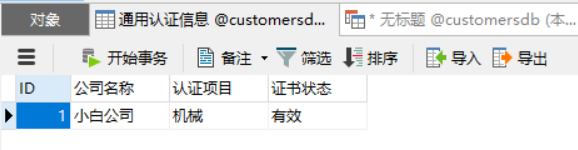

QQ截图20201115144724

sql

-- 改变字段插入顺序，完整插入需要指定全部字段，value值的顺序就要和指定字段的顺序一样
INSERT INTO `通用认证信息` (`公司名称`, `ID`, `认证项目`, `证书状态`) VALUES ('小明公司', '2', '机械', '过期');

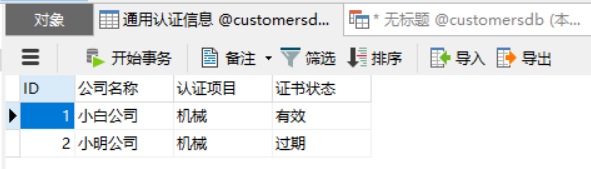

QQ截图20201115150029

不完整插入

插入不完整的行：前提在表中存在列指定空值的情况下，VALUES子句中只对部分列必须提供一个值。

sql

-- 不完整插入的前提是，没有提供值的列允许空值
-- 这里表中的'证书状态'字段允许为空值，可以不提供值
INSERT INTO `通用认证信息` (`公司名称`, `ID`, `认证项目`) VALUES ('小红公司', '3', '电气');

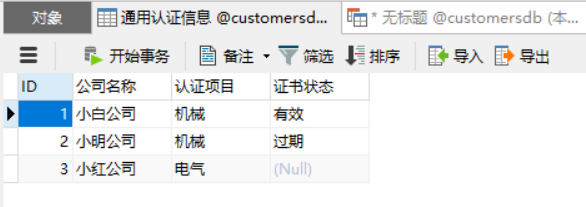

QQ截图20201115152100

数据准备

为了方便后期学习SQL语句，这里提供后期SQL语句要操作到的一些数据。

这些数据该怎么导入，在上面的方法中已经介绍了，可以直接放到Nactive中执行，也可复制到文本文件修改后缀名为 .sql 拖动到Nactive中导入数据。

下面就是myemployees数据库的SQL：

sql

/*
SQLyog Ultimate v10.00 Beta1
MySQL - 5.5.15 : Database - myemployees
*********************************************************************
*/


/*!40101 SET NAMES utf8 */;

/*!40101 SET SQL_MODE=''*/;

/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_提醒S=@@SQL_提醒S, SQL_提醒S=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`myemployees` /*!40100 DEFAULT CHARACTER SET gb2312 */;

USE `myemployees`;

/*Table structure for table `departments` */

DROP TABLE IF EXISTS `departments`;

CREATE TABLE `departments` (
  `department_id` int(4) NOT NULL AUTO_INCREMENT,
  `department_name` varchar(3) DEFAULT NULL,
  `manager_id` int(6) DEFAULT NULL,
  `location_id` int(4) DEFAULT NULL,
  PRIMARY KEY (`department_id`),
  KEY `loc_id_fk` (`location_id`),
  CONSTRAINT `loc_id_fk` FOREIGN KEY (`location_id`) REFERENCES `locations` (`location_id`)
) ENGINE=InnoDB AUTO_INCREMENT=271 DEFAULT CHARSET=gb2312;

/*Data for the table `departments` */

insert  into `departments`(`department_id`,`department_name`,`manager_id`,`location_id`) values (10,'Adm',200,1700),(20,'Mar',201,1800),(30,'Pur',114,1700),(40,'Hum',203,2400),(50,'Shi',121,1500),(60,'IT',103,1400),(70,'Pub',204,2700),(80,'Sal',145,2500),(90,'Exe',100,1700),(100,'Fin',108,1700),(110,'Acc',205,1700),(120,'Tre',NULL,1700),(130,'Cor',NULL,1700),(140,'Con',NULL,1700),(150,'Sha',NULL,1700),(160,'Ben',NULL,1700),(170,'Man',NULL,1700),(180,'Con',NULL,1700),(190,'Con',NULL,1700),(200,'Ope',NULL,1700),(210,'IT ',NULL,1700),(220,'NOC',NULL,1700),(230,'IT ',NULL,1700),(240,'Gov',NULL,1700),(250,'Ret',NULL,1700),(260,'Rec',NULL,1700),(270,'Pay',NULL,1700);

/*Table structure for table `employees` */

DROP TABLE IF EXISTS `employees`;

CREATE TABLE `employees` (
  `employee_id` int(6) NOT NULL AUTO_INCREMENT,
  `first_name` varchar(20) DEFAULT NULL,
  `last_name` varchar(25) DEFAULT NULL,
  `email` varchar(25) DEFAULT NULL,
  `phone_number` varchar(20) DEFAULT NULL,
  `job_id` varchar(10) DEFAULT NULL,
  `salary` double(10,2) DEFAULT NULL,
  `commission_pct` double(4,2) DEFAULT NULL,
  `manager_id` int(6) DEFAULT NULL,
  `department_id` int(4) DEFAULT NULL,
  `hiredate` datetime DEFAULT NULL,
  PRIMARY KEY (`employee_id`),
  KEY `dept_id_fk` (`department_id`),
  KEY `job_id_fk` (`job_id`),
  CONSTRAINT `dept_id_fk` FOREIGN KEY (`department_id`) REFERENCES `departments` (`department_id`),
  CONSTRAINT `job_id_fk` FOREIGN KEY (`job_id`) REFERENCES `jobs` (`job_id`)
) ENGINE=InnoDB AUTO_INCREMENT=207 DEFAULT CHARSET=gb2312;

/*Data for the table `employees` */

insert  into `employees`(`employee_id`,`first_name`,`last_name`,`email`,`phone_number`,`job_id`,`salary`,`commission_pct`,`manager_id`,`department_id`,`hiredate`) values (100,'Steven','K_ing','SKING','515.123.4567','AD_PRES',24000.00,NULL,NULL,90,'1992-04-03 00:00:00'),(101,'Neena','Kochhar','NKOCHHAR','515.123.4568','AD_VP',17000.00,NULL,100,90,'1992-04-03 00:00:00'),(102,'Lex','De Haan','LDEHAAN','515.123.4569','AD_VP',17000.00,NULL,100,90,'1992-04-03 00:00:00'),(103,'Alexander','Hunold','AHUNOLD','590.423.4567','IT_PROG',9000.00,NULL,102,60,'1992-04-03 00:00:00'),(104,'Bruce','Ernst','BERNST','590.423.4568','IT_PROG',6000.00,NULL,103,60,'1992-04-03 00:00:00'),(105,'David','Austin','DAUSTIN','590.423.4569','IT_PROG',4800.00,NULL,103,60,'1998-03-03 00:00:00'),(106,'Valli','Pataballa','VPATABAL','590.423.4560','IT_PROG',4800.00,NULL,103,60,'1998-03-03 00:00:00'),(107,'Diana','Lorentz','DLORENTZ','590.423.5567','IT_PROG',4200.00,NULL,103,60,'1998-03-03 00:00:00'),(108,'Nancy','Greenberg','NGREENBE','515.124.4569','FI_MGR',12000.00,NULL,101,100,'1998-03-03 00:00:00'),(109,'Daniel','Faviet','DFAVIET','515.124.4169','FI_ACCOUNT',9000.00,NULL,108,100,'1998-03-03 00:00:00'),(110,'John','Chen','JCHEN','515.124.4269','FI_ACCOUNT',8200.00,NULL,108,100,'2000-09-09 00:00:00'),(111,'Ismael','Sciarra','ISCIARRA','515.124.4369','FI_ACCOUNT',7700.00,NULL,108,100,'2000-09-09 00:00:00'),(112,'Jose Manuel','Urman','JMURMAN','515.124.4469','FI_ACCOUNT',7800.00,NULL,108,100,'2000-09-09 00:00:00'),(113,'Luis','Popp','LPOPP','515.124.4567','FI_ACCOUNT',6900.00,NULL,108,100,'2000-09-09 00:00:00'),(114,'Den','Raphaely','DRAPHEAL','515.127.4561','PU_MAN',11000.00,NULL,100,30,'2000-09-09 00:00:00'),(115,'Alexander','Khoo','AKHOO','515.127.4562','PU_CLERK',3100.00,NULL,114,30,'2000-09-09 00:00:00'),(116,'Shelli','Baida','SBAIDA','515.127.4563','PU_CLERK',2900.00,NULL,114,30,'2000-09-09 00:00:00'),(117,'Sigal','Tobias','STOBIAS','515.127.4564','PU_CLERK',2800.00,NULL,114,30,'2000-09-09 00:00:00'),(118,'Guy','Himuro','GHIMURO','515.127.4565','PU_CLERK',2600.00,NULL,114,30,'2000-09-09 00:00:00'),(119,'Karen','Colmenares','KCOLMENA','515.127.4566','PU_CLERK',2500.00,NULL,114,30,'2000-09-09 00:00:00'),(120,'Matthew','Weiss','MWEISS','650.123.1234','ST_MAN',8000.00,NULL,100,50,'2004-02-06 00:00:00'),(121,'Adam','Fripp','AFRIPP','650.123.2234','ST_MAN',8200.00,NULL,100,50,'2004-02-06 00:00:00'),(122,'Payam','Kaufling','PKAUFLIN','650.123.3234','ST_MAN',7900.00,NULL,100,50,'2004-02-06 00:00:00'),(123,'Shanta','Vollman','SVOLLMAN','650.123.4234','ST_MAN',6500.00,NULL,100,50,'2004-02-06 00:00:00'),(124,'Kevin','Mourgos','KMOURGOS','650.123.5234','ST_MAN',5800.00,NULL,100,50,'2004-02-06 00:00:00'),(125,'Julia','Nayer','JNAYER','650.124.1214','ST_CLERK',3200.00,NULL,120,50,'2004-02-06 00:00:00'),(126,'Irene','Mikkilineni','IMIKKILI','650.124.1224','ST_CLERK',2700.00,NULL,120,50,'2004-02-06 00:00:00'),(127,'James','Landry','JLANDRY','650.124.1334','ST_CLERK',2400.00,NULL,120,50,'2004-02-06 00:00:00'),(128,'Steven','Markle','SMARKLE','650.124.1434','ST_CLERK',2200.00,NULL,120,50,'2004-02-06 00:00:00'),(129,'Laura','Bissot','LBISSOT','650.124.5234','ST_CLERK',3300.00,NULL,121,50,'2004-02-06 00:00:00'),(130,'Mozhe','Atkinson','MATKINSO','650.124.6234','ST_CLERK',2800.00,NULL,121,50,'2004-02-06 00:00:00'),(131,'James','Marlow','JAMRLOW','650.124.7234','ST_CLERK',2500.00,NULL,121,50,'2004-02-06 00:00:00'),(132,'TJ','Olson','TJOLSON','650.124.8234','ST_CLERK',2100.00,NULL,121,50,'2004-02-06 00:00:00'),(133,'Jason','Mallin','JMALLIN','650.127.1934','ST_CLERK',3300.00,NULL,122,50,'2004-02-06 00:00:00'),(134,'Michael','Rogers','MROGERS','650.127.1834','ST_CLERK',2900.00,NULL,122,50,'2002-12-23 00:00:00'),(135,'Ki','Gee','KGEE','650.127.1734','ST_CLERK',2400.00,NULL,122,50,'2002-12-23 00:00:00'),(136,'Hazel','Philtanker','HPHILTAN','650.127.1634','ST_CLERK',2200.00,NULL,122,50,'2002-12-23 00:00:00'),(137,'Renske','Ladwig','RLADWIG','650.121.1234','ST_CLERK',3600.00,NULL,123,50,'2002-12-23 00:00:00'),(138,'Stephen','Stiles','SSTILES','650.121.2034','ST_CLERK',3200.00,NULL,123,50,'2002-12-23 00:00:00'),(139,'John','Seo','JSEO','650.121.2019','ST_CLERK',2700.00,NULL,123,50,'2002-12-23 00:00:00'),(140,'Joshua','Patel','JPATEL','650.121.1834','ST_CLERK',2500.00,NULL,123,50,'2002-12-23 00:00:00'),(141,'Trenna','Rajs','TRAJS','650.121.8009','ST_CLERK',3500.00,NULL,124,50,'2002-12-23 00:00:00'),(142,'Curtis','Davies','CDAVIES','650.121.2994','ST_CLERK',3100.00,NULL,124,50,'2002-12-23 00:00:00'),(143,'Randall','Matos','RMATOS','650.121.2874','ST_CLERK',2600.00,NULL,124,50,'2002-12-23 00:00:00'),(144,'Peter','Vargas','PVARGAS','650.121.2004','ST_CLERK',2500.00,NULL,124,50,'2002-12-23 00:00:00'),(145,'John','Russell','JRUSSEL','011.44.1344.429268','SA_MAN',14000.00,0.40,100,80,'2002-12-23 00:00:00'),(146,'Karen','Partners','KPARTNER','011.44.1344.467268','SA_MAN',13500.00,0.30,100,80,'2002-12-23 00:00:00'),(147,'Alberto','Errazuriz','AERRAZUR','011.44.1344.429278','SA_MAN',12000.00,0.30,100,80,'2002-12-23 00:00:00'),(148,'Gerald','Cambrault','GCAMBRAU','011.44.1344.619268','SA_MAN',11000.00,0.30,100,80,'2002-12-23 00:00:00'),(149,'Eleni','Zlotkey','EZLOTKEY','011.44.1344.429018','SA_MAN',10500.00,0.20,100,80,'2002-12-23 00:00:00'),(150,'Peter','Tucker','PTUCKER','011.44.1344.129268','SA_REP',10000.00,0.30,145,80,'2014-03-05 00:00:00'),(151,'David','Bernstein','DBERNSTE','011.44.1344.345268','SA_REP',9500.00,0.25,145,80,'2014-03-05 00:00:00'),(152,'Peter','Hall','PHALL','011.44.1344.478968','SA_REP',9000.00,0.25,145,80,'2014-03-05 00:00:00'),(153,'Christopher','Olsen','COLSEN','011.44.1344.498718','SA_REP',8000.00,0.20,145,80,'2014-03-05 00:00:00'),(154,'Nanette','Cambrault','NCAMBRAU','011.44.1344.987668','SA_REP',7500.00,0.20,145,80,'2014-03-05 00:00:00'),(155,'Oliver','Tuvault','OTUVAULT','011.44.1344.486508','SA_REP',7000.00,0.15,145,80,'2014-03-05 00:00:00'),(156,'Janette','K_ing','JKING','011.44.1345.429268','SA_REP',10000.00,0.35,146,80,'2014-03-05 00:00:00'),(157,'Patrick','Sully','PSULLY','011.44.1345.929268','SA_REP',9500.00,0.35,146,80,'2014-03-05 00:00:00'),(158,'Allan','McEwen','AMCEWEN','011.44.1345.829268','SA_REP',9000.00,0.35,146,80,'2014-03-05 00:00:00'),(159,'Lindsey','Smith','LSMITH','011.44.1345.729268','SA_REP',8000.00,0.30,146,80,'2014-03-05 00:00:00'),(160,'Louise','Doran','LDORAN','011.44.1345.629268','SA_REP',7500.00,0.30,146,80,'2014-03-05 00:00:00'),(161,'Sarath','Sewall','SSEWALL','011.44.1345.529268','SA_REP',7000.00,0.25,146,80,'2014-03-05 00:00:00'),(162,'Clara','Vishney','CVISHNEY','011.44.1346.129268','SA_REP',10500.00,0.25,147,80,'2014-03-05 00:00:00'),(163,'Danielle','Greene','DGREENE','011.44.1346.229268','SA_REP',9500.00,0.15,147,80,'2014-03-05 00:00:00'),(164,'Mattea','Marvins','MMARVINS','011.44.1346.329268','SA_REP',7200.00,0.10,147,80,'2014-03-05 00:00:00'),(165,'David','Lee','DLEE','011.44.1346.529268','SA_REP',6800.00,0.10,147,80,'2014-03-05 00:00:00'),(166,'Sundar','Ande','SANDE','011.44.1346.629268','SA_REP',6400.00,0.10,147,80,'2014-03-05 00:00:00'),(167,'Amit','Banda','ABANDA','011.44.1346.729268','SA_REP',6200.00,0.10,147,80,'2014-03-05 00:00:00'),(168,'Lisa','Ozer','LOZER','011.44.1343.929268','SA_REP',11500.00,0.25,148,80,'2014-03-05 00:00:00'),(169,'Harrison','Bloom','HBLOOM','011.44.1343.829268','SA_REP',10000.00,0.20,148,80,'2014-03-05 00:00:00'),(170,'Tayler','Fox','TFOX','011.44.1343.729268','SA_REP',9600.00,0.20,148,80,'2014-03-05 00:00:00'),(171,'William','Smith','WSMITH','011.44.1343.629268','SA_REP',7400.00,0.15,148,80,'2014-03-05 00:00:00'),(172,'Elizabeth','Bates','EBATES','011.44.1343.529268','SA_REP',7300.00,0.15,148,80,'2014-03-05 00:00:00'),(173,'Sundita','Kumar','SKUMAR','011.44.1343.329268','SA_REP',6100.00,0.10,148,80,'2014-03-05 00:00:00'),(174,'Ellen','Abel','EABEL','011.44.1644.429267','SA_REP',11000.00,0.30,149,80,'2014-03-05 00:00:00'),(175,'Alyssa','Hutton','AHUTTON','011.44.1644.429266','SA_REP',8800.00,0.25,149,80,'2014-03-05 00:00:00'),(176,'Jonathon','Taylor','JTAYLOR','011.44.1644.429265','SA_REP',8600.00,0.20,149,80,'2014-03-05 00:00:00'),(177,'Jack','Livingston','JLIVINGS','011.44.1644.429264','SA_REP',8400.00,0.20,149,80,'2014-03-05 00:00:00'),(178,'Kimberely','Grant','KGRANT','011.44.1644.429263','SA_REP',7000.00,0.15,149,NULL,'2014-03-05 00:00:00'),(179,'Charles','Johnson','CJOHNSON','011.44.1644.429262','SA_REP',6200.00,0.10,149,80,'2014-03-05 00:00:00'),(180,'Winston','Taylor','WTAYLOR','650.507.9876','SH_CLERK',3200.00,NULL,120,50,'2014-03-05 00:00:00'),(181,'Jean','Fleaur','JFLEAUR','650.507.9877','SH_CLERK',3100.00,NULL,120,50,'2014-03-05 00:00:00'),(182,'Martha','Sullivan','MSULLIVA','650.507.9878','SH_CLERK',2500.00,NULL,120,50,'2014-03-05 00:00:00'),(183,'Girard','Geoni','GGEONI','650.507.9879','SH_CLERK',2800.00,NULL,120,50,'2014-03-05 00:00:00'),(184,'Nandita','Sarchand','NSARCHAN','650.509.1876','SH_CLERK',4200.00,NULL,121,50,'2014-03-05 00:00:00'),(185,'Alexis','Bull','ABULL','650.509.2876','SH_CLERK',4100.00,NULL,121,50,'2014-03-05 00:00:00'),(186,'Julia','Dellinger','JDELLING','650.509.3876','SH_CLERK',3400.00,NULL,121,50,'2014-03-05 00:00:00'),(187,'Anthony','Cabrio','ACABRIO','650.509.4876','SH_CLERK',3000.00,NULL,121,50,'2014-03-05 00:00:00'),(188,'Kelly','Chung','KCHUNG','650.505.1876','SH_CLERK',3800.00,NULL,122,50,'2014-03-05 00:00:00'),(189,'Jennifer','Dilly','JDILLY','650.505.2876','SH_CLERK',3600.00,NULL,122,50,'2014-03-05 00:00:00'),(190,'Timothy','Gates','TGATES','650.505.3876','SH_CLERK',2900.00,NULL,122,50,'2014-03-05 00:00:00'),(191,'Randall','Perkins','RPERKINS','650.505.4876','SH_CLERK',2500.00,NULL,122,50,'2014-03-05 00:00:00'),(192,'Sarah','Bell','SBELL','650.501.1876','SH_CLERK',4000.00,NULL,123,50,'2014-03-05 00:00:00'),(193,'Britney','Everett','BEVERETT','650.501.2876','SH_CLERK',3900.00,NULL,123,50,'2014-03-05 00:00:00'),(194,'Samuel','McCain','SMCCAIN','650.501.3876','SH_CLERK',3200.00,NULL,123,50,'2014-03-05 00:00:00'),(195,'Vance','Jones','VJONES','650.501.4876','SH_CLERK',2800.00,NULL,123,50,'2014-03-05 00:00:00'),(196,'Alana','Walsh','AWALSH','650.507.9811','SH_CLERK',3100.00,NULL,124,50,'2014-03-05 00:00:00'),(197,'Kevin','Feeney','KFEENEY','650.507.9822','SH_CLERK',3000.00,NULL,124,50,'2014-03-05 00:00:00'),(198,'Donald','OConnell','DOCONNEL','650.507.9833','SH_CLERK',2600.00,NULL,124,50,'2014-03-05 00:00:00'),(199,'Douglas','Grant','DGRANT','650.507.9844','SH_CLERK',2600.00,NULL,124,50,'2014-03-05 00:00:00'),(200,'Jennifer','Whalen','JWHALEN','515.123.4444','AD_ASST',4400.00,NULL,101,10,'2016-03-03 00:00:00'),(201,'Michael','Hartstein','MHARTSTE','515.123.5555','MK_MAN',13000.00,NULL,100,20,'2016-03-03 00:00:00'),(202,'Pat','Fay','PFAY','603.123.6666','MK_REP',6000.00,NULL,201,20,'2016-03-03 00:00:00'),(203,'Susan','Mavris','SMAVRIS','515.123.7777','HR_REP',6500.00,NULL,101,40,'2016-03-03 00:00:00'),(204,'Hermann','Baer','HBAER','515.123.8888','PR_REP',10000.00,NULL,101,70,'2016-03-03 00:00:00'),(205,'Shelley','Higgins','SHIGGINS','515.123.8080','AC_MGR',12000.00,NULL,101,110,'2016-03-03 00:00:00'),(206,'William','Gietz','WGIETZ','515.123.8181','AC_ACCOUNT',8300.00,NULL,205,110,'2016-03-03 00:00:00');

/*Table structure for table `jobs` */

DROP TABLE IF EXISTS `jobs`;

CREATE TABLE `jobs` (
  `job_id` varchar(10) NOT NULL,
  `job_title` varchar(35) DEFAULT NULL,
  `min_salary` int(6) DEFAULT NULL,
  `max_salary` int(6) DEFAULT NULL,
  PRIMARY KEY (`job_id`)
) ENGINE=InnoDB DEFAULT CHARSET=gb2312;

/*Data for the table `jobs` */

insert  into `jobs`(`job_id`,`job_title`,`min_salary`,`max_salary`) values ('AC_ACCOUNT','Public Accountant',4200,9000),('AC_MGR','Accounting Manager',8200,16000),('AD_ASST','Administration Assistant',3000,6000),('AD_PRES','President',20000,40000),('AD_VP','Administration Vice President',15000,30000),('FI_ACCOUNT','Accountant',4200,9000),('FI_MGR','Finance Manager',8200,16000),('HR_REP','Human Resources Representative',4000,9000),('IT_PROG','Programmer',4000,10000),('MK_MAN','Marketing Manager',9000,15000),('MK_REP','Marketing Representative',4000,9000),('PR_REP','Public Relations Representative',4500,10500),('PU_CLERK','Purchasing Clerk',2500,5500),('PU_MAN','Purchasing Manager',8000,15000),('SA_MAN','Sales Manager',10000,20000),('SA_REP','Sales Representative',6000,12000),('SH_CLERK','Shipping Clerk',2500,5500),('ST_CLERK','Stock Clerk',2000,5000),('ST_MAN','Stock Manager',5500,8500);

/*Table structure for table `locations` */

DROP TABLE IF EXISTS `locations`;

CREATE TABLE `locations` (
  `location_id` int(11) NOT NULL AUTO_INCREMENT,
  `street_address` varchar(40) DEFAULT NULL,
  `postal_code` varchar(12) DEFAULT NULL,
  `city` varchar(30) DEFAULT NULL,
  `state_province` varchar(25) DEFAULT NULL,
  `country_id` varchar(2) DEFAULT NULL,
  PRIMARY KEY (`location_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3201 DEFAULT CHARSET=gb2312;

/*Data for the table `locations` */

insert  into `locations`(`location_id`,`street_address`,`postal_code`,`city`,`state_province`,`country_id`) values (1000,'1297 Via Cola di Rie','00989','Roma',NULL,'IT'),(1100,'93091 Calle della Testa','10934','Venice',NULL,'IT'),(1200,'2017 Shinjuku-ku','1689','Tokyo','Tokyo Prefecture','JP'),(1300,'9450 Kamiya-cho','6823','Hiroshima',NULL,'JP'),(1400,'2014 Jabberwocky Rd','26192','Southlake','Texas','US'),(1500,'2011 Interiors Blvd','99236','South San Francisco','California','US'),(1600,'2007 Zagora St','50090','South Brunswick','New Jersey','US'),(1700,'2004 Charade Rd','98199','Seattle','Washington','US'),(1800,'147 Spadina Ave','M5V 2L7','Toronto','Ontario','CA'),(1900,'6092 Boxwood St','YSW 9T2','Whitehorse','Yukon','CA'),(2000,'40-5-12 Laogianggen','190518','Beijing',NULL,'CN'),(2100,'1298 Vileparle (E)','490231','Bombay','Maharashtra','IN'),(2200,'12-98 Victoria Street','2901','Sydney','New South Wales','AU'),(2300,'198 Clementi North','540198','Singapore',NULL,'SG'),(2400,'8204 Arthur St',NULL,'London',NULL,'UK'),(2500,'Magdalen Centre, The Oxford Science Park','OX9 9ZB','Oxford','Oxford','UK'),(2600,'9702 Chester Road','09629850293','Stretford','Manchester','UK'),(2700,'Schwanthalerstr. 7031','80925','Munich','Bavaria','DE'),(2800,'Rua Frei Caneca 1360 ','01307-002','Sao Paulo','Sao Paulo','BR'),(2900,'20 Rue des Corps-Saints','1730','Geneva','Geneve','CH'),(3000,'Murtenstrasse 921','3095','Bern','BE','CH'),(3100,'Pieter Breughelstraat 837','3029SK','Utrecht','Utrecht','NL'),(3200,'Mariano Escobedo 9991','11932','Mexico City','Distrito Federal,','MX');

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_提醒S=@OLD_SQL_提醒S */;

导入上面的数据后，在Nactive中刷新会多出一个"myemployees"数据库，里面有4张表，每张表中都包含不同的字段：

QQ截图20201122014824

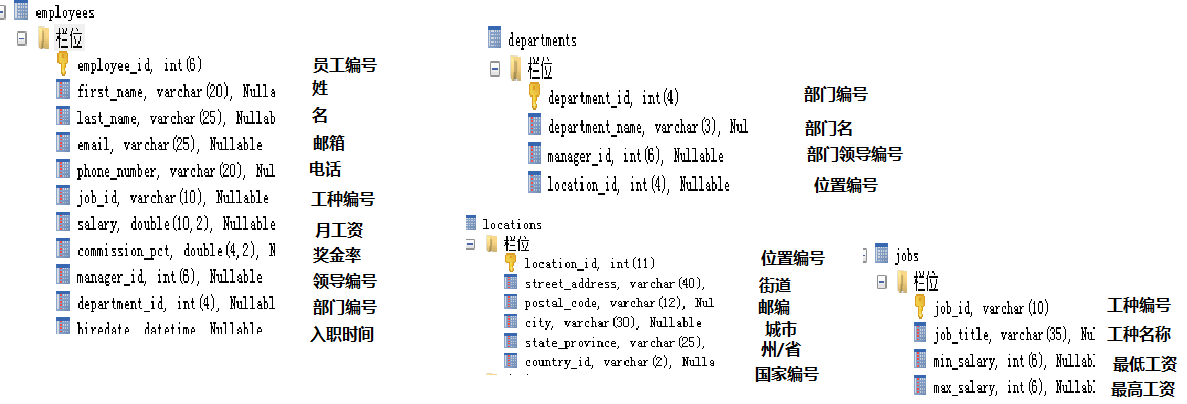

每个字段的含义如下：

myemployees库中的四张表

下面就是girls数据库的SQL：

sql

/*
SQLyog Ultimate v10.00 Beta1
MySQL - 5.7.18-log : Database - girls
*********************************************************************
*/


/*!40101 SET NAMES utf8 */;

/*!40101 SET SQL_MODE=''*/;

/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_提醒S=@@SQL_提醒S, SQL_提醒S=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`girls` /*!40100 DEFAULT CHARACTER SET utf8 */;

USE `girls`;

/*Table structure for table `admin` */

DROP TABLE IF EXISTS `admin`;

CREATE TABLE `admin` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(10) NOT NULL,
  `password` varchar(10) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

/*Data for the table `admin` */

insert  into `admin`(`id`,`username`,`password`) values (1,'john','8888'),(2,'lyt','6666');

/*Table structure for table `beauty` */

DROP TABLE IF EXISTS `beauty`;

CREATE TABLE `beauty` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) NOT NULL,
  `sex` char(1) DEFAULT '女',
  `borndate` datetime DEFAULT '1987-01-01 00:00:00',
  `phone` varchar(11) NOT NULL,
  `photo` blob,
  `boyfriend_id` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=13 DEFAULT CHARSET=utf8;

/*Data for the table `beauty` */

insert  into `beauty`(`id`,`name`,`sex`,`borndate`,`phone`,`photo`,`boyfriend_id`) values (1,'柳岩','女','1988-02-03 00:00:00','18209876577',NULL,8),(2,'苍老师','女','1987-12-30 00:00:00','18219876577',NULL,9),(3,'Angelababy','女','1989-02-03 00:00:00','18209876567',NULL,3),(4,'热巴','女','1993-02-03 00:00:00','18209876579',NULL,2),(5,'周冬雨','女','1992-02-03 00:00:00','18209179577',NULL,9),(6,'周芷若','女','1988-02-03 00:00:00','18209876577',NULL,1),(7,'岳灵珊','女','1987-12-30 00:00:00','18219876577',NULL,9),(8,'小昭','女','1989-02-03 00:00:00','18209876567',NULL,1),(9,'双儿','女','1993-02-03 00:00:00','18209876579',NULL,9),(10,'王语嫣','女','1992-02-03 00:00:00','18209179577',NULL,4),(11,'夏雪','女','1993-02-03 00:00:00','18209876579',NULL,9),(12,'赵敏','女','1992-02-03 00:00:00','18209179577',NULL,1);

/*Table structure for table `boys` */

DROP TABLE IF EXISTS `boys`;

CREATE TABLE `boys` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `boyName` varchar(20) DEFAULT NULL,
  `userCP` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;

/*Data for the table `boys` */

insert  into `boys`(`id`,`boyName`,`userCP`) values (1,'张无忌',100),(2,'鹿晗',800),(3,'黄晓明',50),(4,'段誉',300);

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_提醒S=@OLD_SQL_提醒S */;

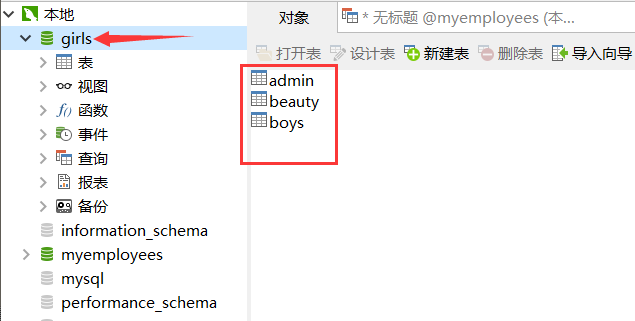

导入上面的数据后，在Nactive中刷新会多出一个"girls"数据库，里面有3张表，每张表中都包含不同的字段：

QQ截图20201206181655

这张表放在myemployees库当中，也就是在myemployees库中执行下面SQL语句。

sql

CREATE TABLE job_grades
(grade_level VARCHAR(3),
 lowest_sal INT,
highest_sal INT);

INSERT INTO job_grades VALUES ('A', 1000, 2999);
INSERT INTO job_grades VALUES ('B', 3000, 5999);
INSERT INTO job_grades VALUES ('C', 6000, 9999);
INSERT INTO job_grades VALUES ('D', 10000, 14999);
INSERT INTO job_grades VALUES ('E', 15000, 24999);
INSERT INTO job_grades VALUES ('F', 25000, 40000);
